Hi SH, Would you plz help check when we could introduce the 2nd source? Thanks Henry |
|
|
Hi Henry Here is feedback below Eagle (T99X171.00) 2nd source Hynix new die and switch tact list_0319.xlsx (10,019,150 bytes) 1. Please attache the Die Revision Notification from Hynix (PCN). 2. EMC/EMI Test can not waive the test report for Hynix DDR. Die change (revision) is related safety regulation - KC certification. 3. PCB "Change the PCB label to laser printing. : Please make the PCN letter by FII or PCB vender. Eagle (T99X171.00) 2nd source Samsung new die and Transformer list_0319_.xlsx (13,974,288 bytes) 1. Please attache the Die Revision Notification from Samsung (PCN). 2. Samsung DDR SI test report : Please update officially released report. 3. EMC/EMI Test can not waive the test report for Samsung DDR Die change (revision) is related safety regulation - KC certification. 4. Ethernet SI test report zip file - Lan 1G Ethernet pair4_pin7-pin8_D.pdf is broken. 5. Please update surge test report from vender. 6. EMC/EMI Test for Transformer : Please make EMI report before change Transformer (BOTHHAND) and after change Transformer(MINGTEK) if you have any question, please contact me. Thanks SON |
|
|
Hi SH, We booked the time slot with EMC lab in next week and expect to reply with a complete report according to the request above by 4/30. However, still have some questions 1. Surge test: a. We checked with vendor and they don't do the surge test for the transformer. They only do the Hi Pot test. b. Eagle is the product for indoor use...we don't quite understand why the request for surge test. Besides, the KC didn't request for surge test. Plz help check if this test could be waived. 2. PCN for PCB: As explained this is for manufacturing improvement...no PCN letter for it. Could you help explain this way? Thanks, Henry |
|
|
Hi Henrt 1. Surge test : if can not vender test, Please proceed Fii lab test even if not a part of KC and indoor use, this is SKB engineer request that verify surge test. the original Eagle ethernet with the transformer was verified surge test. Because part change requested by FII, FII have to prove surge no problem. 2. PCN for PCB : As I mentioned, PCN is the evidence for the change. Thanks SON |
|
|
Hi SH, Update report note : 1. Surge test : testing in progress. 2. Can the 2nd source parts that have been reported be issued EC ( release EC change) ? |
|
|
Hi SH, Update report note : 1. Surge test : testing in report. 2. Can the 2nd source parts that have been reported be issued EC ( release EC change) ? |
|
|
HI Dennis Lu We are under review now. will feedback until early next week. Thanks SON |
|
|
Hi Dennis. SKB confirm that all of part changed is approved. Please inform us about the serial number of the parts change began Thanks SON |
|
|
Hi Lonnie & Mr. YOON, Plz find the 2nd source list and comparison table as attached. Need your kindly help to review and have your comments. Our RD will kick-off the verification with your agreement. Thanks. Cato |
|
|
Hi Cato Please refer to attached our feedback Best regards Lonnie Kim |
|
|
Hi Loonie, Plz find the updated comparison table and the feedback to you as attached. Need your help to review and have your comments again. Thanks. Cato |
|
|
Hi cato Please refer to attached out feedback Best regards jung |
|
|
Hi Loonie and Jung, Please refer to attached to check the feedback from our HW RD. Warm regards, Cato |
|
|
Hi Loonie and Jung, Please refer to attached to check the latest feedback from our HW RD. Warm regards, Cato |
|
|
Hi Cato Regarding RJ-45 cable, please provide full data(as like original source) included below items. Your 2nd source only have product drawing. 1. PRODUCT DRAWING 2. FAI 3. BOM 4. RAW CABLE SPEC 5. PARTS SPEC 6. PRODUCT PHOTO 7. WEIGHING PHOT 8. SPP Best regards Lonnie Kim |
|
|
Hi Loonie, Please refer to attached to find the 2nd source datasheet of RJ45 cable. Warm regards, Cato |
|
|
Hi Lonnie, Attached is EMC test report of Eagle 2nd parts Regards, Cooper |
|
|
Hi Lonnie, These are the test reports of the 2nd parts(eFuse, LDO, IR receiver, X'tal) Tact switch is still under testing, I will upload on here after testing finished. Regards. Cooper |
|
|
|
|
|
Hi Cooper Please check the contents below and give feedback. 1. X_tal - Y801’s drive level has tight margin. Please check orignal source’s drive level 2. E-Fuse - OVC waveform: Please wide time scale and capture as like orignal source(page1-2) - Please capture waveform same voltage and time scale about original and 2’nd source.(page 4-5) 3. LDO - Please capture waveform same voltage and time scale about original and 2’nd source.(page 5-7) - Please provide OVP/OCP/OTP test result if they support functions. Best regards jung image.png (26,268 bytes) |
|
|

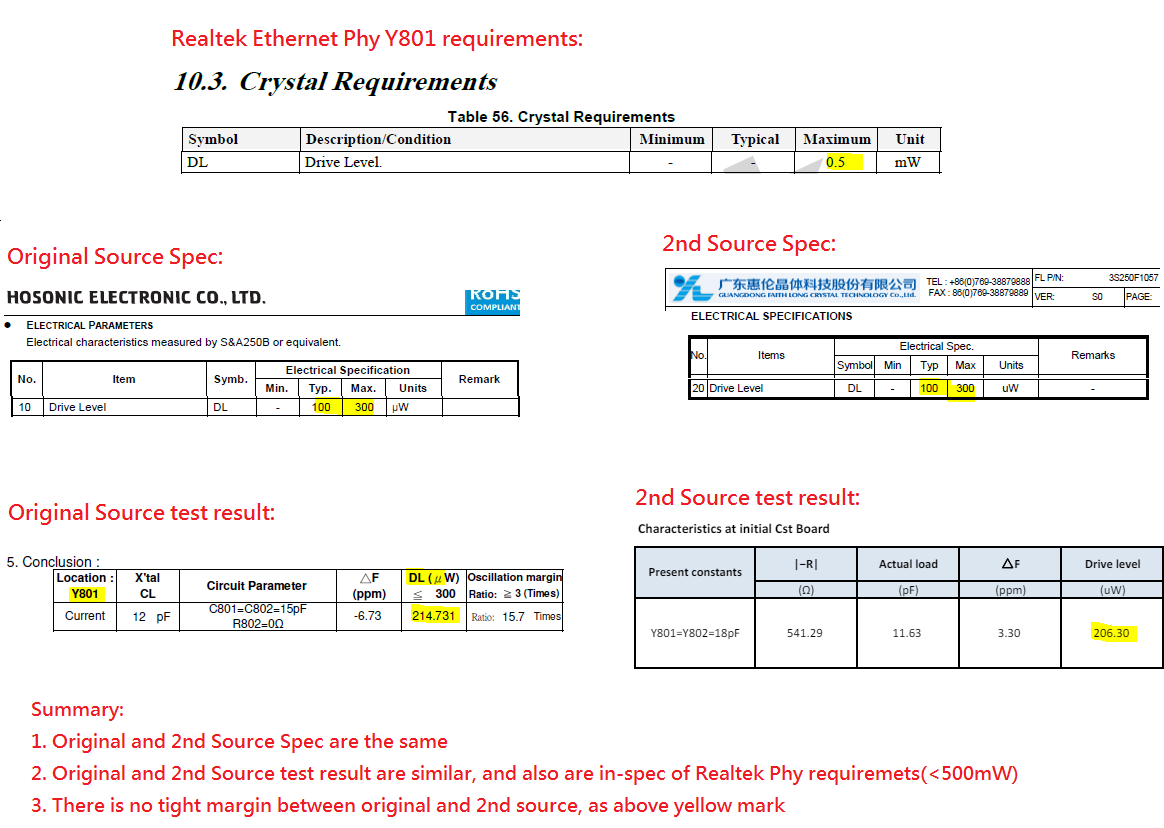

Hi Jung, The following is our reply, please help give feedback too 1. X_tal - Y801’s drive level has tight margin. Please check orignal source’s drive level [Cooper]: Please see the attached for our explain 2. E-Fuse - OVC waveform: Please wide time scale and capture as like orignal source(page1-2) [Cooper]: I'm not understand for your mean, You mean to ask our 2nd source vendor to provide the attached picture(please see attached) of page 1? - Please capture waveform same voltage and time scale about original and 2’nd source.(page 4-5) [Cooper]: Please point your concern about 2nd source's waveforms for us, we think that the 2nd's waveforms of voltage scale is not impact the test result, and the time scale is more accurate than original source. 3. LDO - Please capture waveform same voltage and time scale about original and 2’nd source.(page 5-7) [Cooper]: There still has more margin and results are pass too, please point your concern about 2nd source's waveforms for us. - Please provide OVP/OCP/OTP test result if they support functions. [Cooper]: 2nd source's LDO has no support OVP/OCP/OTP function in datasheet. Regards. Cooper Crystal explaination for Q1.png (90,878 bytes) Page 1 attached .PNG (16,625 bytes) |
|
|
Hi, Cooper Please refer to attached file and measure below scale about ripple noise. - Vertical 100 mV/div Horizontal 2 ms/div Best regards Lonnie Kim |
|
|
Hi Lonnie, I updated attached as below: 1. New e-fuse test report 2. New datasheet for e-Fuse 3. New LDO test report 4. LDO OCP/OTP test report Regards. Cooper |
|
|
Hi Lonnie, Add HWQA test report and ETA5056 short protection test report as attached Regards. Cooper |
|
|
Hi Lonnie, Attached is LDO 2nd's OCP/OTP test report on Eagle board Specification of OCP is also updated on datasheet as attached Regards. Cooper |
|
|
Hi Cooper and Cato For the ALT internal process, please fill in the attachment document this changes. We will release officially approved by document. Thanks SON |
|
|
Hi, Cooper and Cato We approved 2nd source introduction. Please fill out and release cut-in information when you apply 2nd source. Best regards Lonnie Kim |
|
|
